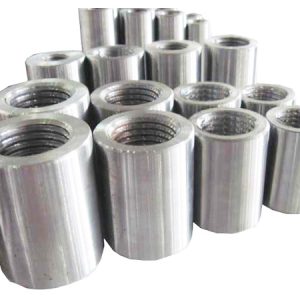

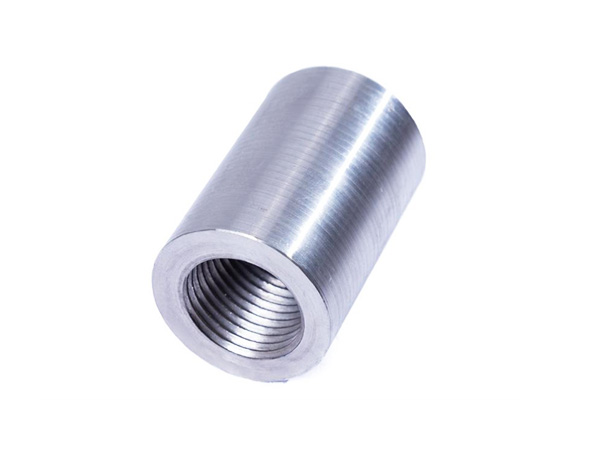

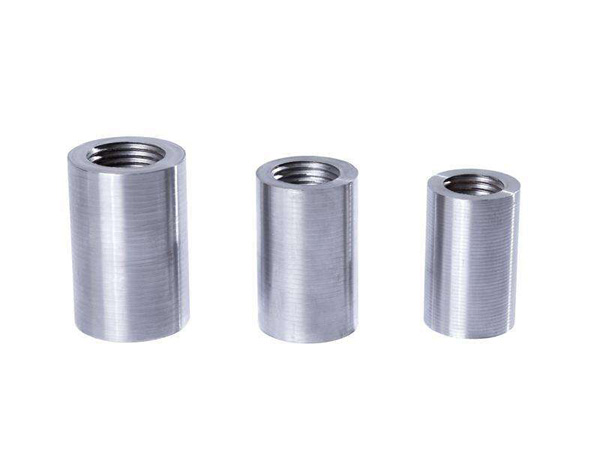

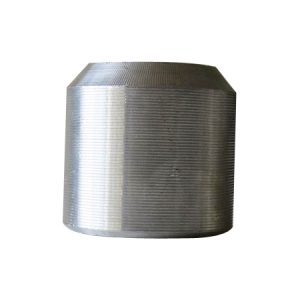

Name: Parallel Threading Rebar Coupler#
Brand: GLUS
SKU: 58
Availability: InStock

描述

Material: 45# high quality carbon steel
Introduction: Parallel Thread Rebar couplers are devices used to join lengths of rebar together, allowing to quickly and safely create a high performance splice on the construction site. Usually, the rebar ends need to be prepared to connect two bars. This is done by specific equipment which GLUS has engineered and manufactured.

Product STANDARD

Thread Pitch: 2.5, 3.0

Tread angle: 60°, 75°

Type: Standard Type, Transition Type, Left-handed and Right-handed Type

Standard: 2010, 2016

GLUS Marking: w/, w/o

product PARAMETERS

2016 Standard
Rebar Diameter (mm)	Coupler Length (mm)	External Diameter (mm)	Thread Pitch (mm)
14	35.0	22.0	2.5
16	40.0	24.0	2.5
18	45.0	27.0	2.5
20	50.0	30.0	2.5
22	55.0	32.5	2.5
25	60.0	37.0	3.0
28	65.0	41.5	3.0
32	70.0	47.5	3.0
36	80.0	53.0	3.0
40	87.0	59.0	3.0
