Name: Grouting Rebar Coupler#
Brand: GLUS
SKU: 193
Availability: InStock

描述

Material: 45# high quality carbon steel

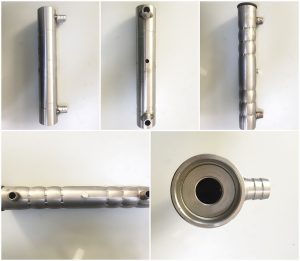

Introduction: Grout sleeve coupler is one of new types in coupler industry, with special customized material, full grouting connection method. GLUS adopts advanced production process with high precision to ensure product quality, produced in large quantities and strictly according to the standards.

Product ADVANTAGES

Make full use of the material and reduce the cost of production.
Fast installation, convenient and save time.
Both ends are connected by high strength grouting material and rebar, to make sure firmly connecting.

Product APPLICATION

Used for precast concrete shear wall.
Used for precast concrete frame column.
Used for precast concrete frame beam.

Product PARAMETERS

Model	Rebar Size (mm)	Coupler External Diameter D(mm)	Coupler Internal Diameter d(mm)	Coupler Length L(mm)	Grout Need (kg)	Coupler Net Weight (kg)
GT12L	∅12	44	32.5	250	0.6	1.3
GT14L	∅14	46	34.5	280	0.7	1.49
GT16L	∅16	48	36.5	315	0.8	1.95
GT18L	∅18	50	38.5	345	0.9	2.05
GT20L	∅20	52	40.5	375	1.02	2.3
GT22L	∅22	54	42.5	410	1.18	2.85
GT25L	∅25	58	46.5	455	1.45	3.45
GT28L	∅28	63	50.5	505	1.76	3.7
GT32L	∅32	67	54.5	570	2.2	4.75
GT36L	∅36	74	62.5	635	3.18	6.3
GT40L	∅40	82	70.5	705	4.46	8.6
